Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room
Specifications
| Gas Detected | H2 |
| Detection principle | Electrochemical |
| Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. |
| Measure Range | 0-1000/2000/5000/10000/20000/40000PPM, 0-100%LEL |
| Resolution | 1ppm, 1%LEL |
| Precision | ≤±3% F.S. |
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-95%RH |
| Explosion-Proof | ExiaⅡCT4 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Operating time | 100h pump off |
| Dimensions | 205*75*32mm | Weight | 300g |
Product advantage
- Employing original imported first-class brand sensor, for example Alpha, CITY, ION, Dynament, Honeywell and etc.
- (optional) High speed data transmission by USB, which can download and print data.
- LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.
- Support Chinese and English operation, easy to shift.
- The gas concentration unit PPM and mg/m3 can be shifted quickly.
- Built-in micro sampling pump, 10 grades of suction are available.
- Explosion-proof certification, explosion-proof grade: Ex ia IIC T4 G
Why choose us?
A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.
B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market
C Quality: international top brands sensor and IC /100% production test, make sure a good quality
D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health
Toxic Hydrogen Gas Detector Product Overview
SKY2000 series gas detector is a kind of fast response and high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Unique design, small size and easy to carry with. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment. We dedicate to provide you the most reliable, accurate and the safest solution of gas detection.
Single gas detector Multi gas detector

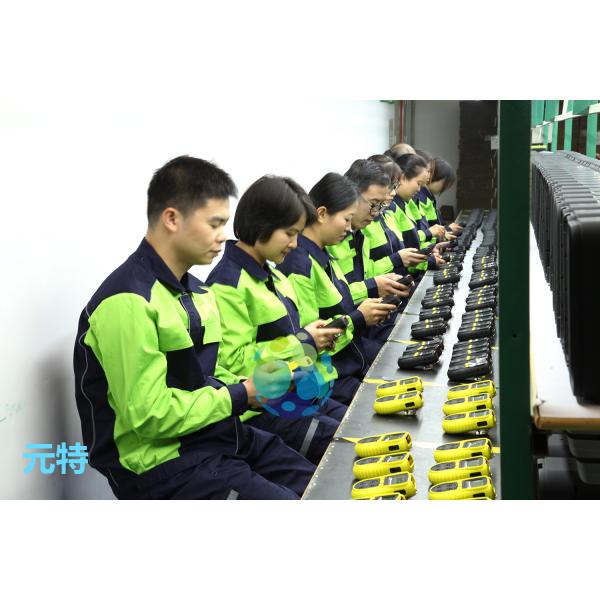

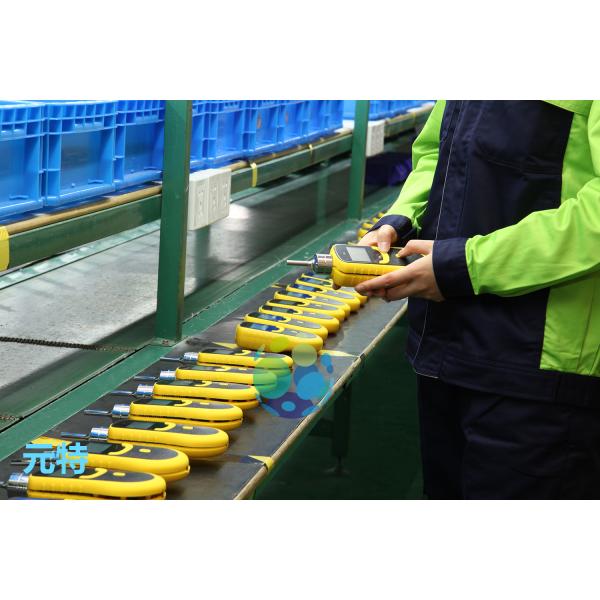

Production line

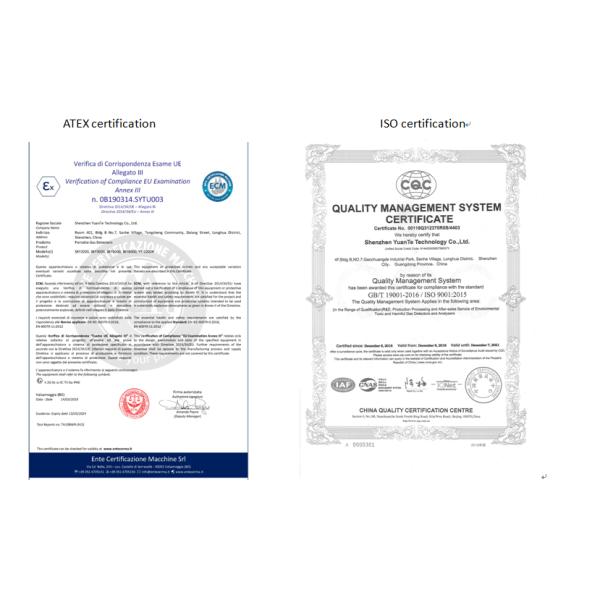

Certifications
Aluminum Product package
Services:
- 1. One year free warranty.
- 2. All machines are debugged before shipment.
- 3. Lifetime technical support and service.
- 4. 24 hours on line or phone or by email technical support.
- 5. We offer detailed machine manual and software manual.
- 6. Our factory make a vivid training CD.
- 7. Life-long free maintenance.
- 8. Free training in our factory.
- Welcome to visit our factory, learn machine face to face.
